Aluminum Underbody Skid Plate Engine & Transmission Jeep Gladiator JT

• jeep

• JT Gladiator

Robust protection for the mechanical core of your pickup – Highly effective safeguarding of the V6 EcoDiesel's engine, oil pan, and main transmission!

The MorE 4x4 aluminum combined skid plate for the Jeep Gladiator JT (models from model year 2019) provides a high-strength barrier for your off-road pickup's most important drivetrain components: the engine oil pan and the main transmission. Those who drive the Gladiator on demanding overland tours, rock crawling, or in tough work assignments off paved roads expose the long underbody to significant dangers. Sharp rocks, massive tree stumps, or bottoming out on hard humps can irreparably damage the heavy engine or transmission housing – leading to abrupt oil loss and extremely expensive damage.

This vehicle-specific underbody protection was developed precisely for these harsh off-road conditions and the weight of the V6 engine. Thanks to its well-thought-out design, this skid plate can be mounted completely independently and separately, without necessarily requiring the installation of the other components of the underbody system (such as radiator protection or transfer case protection).

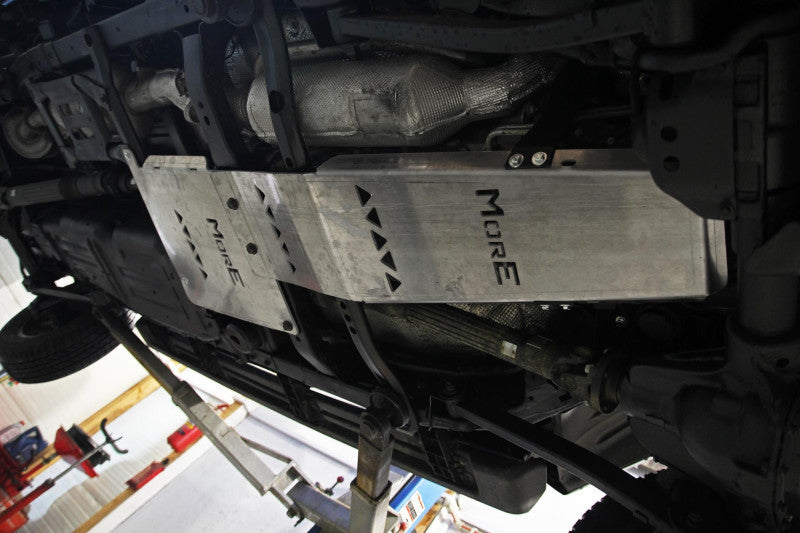

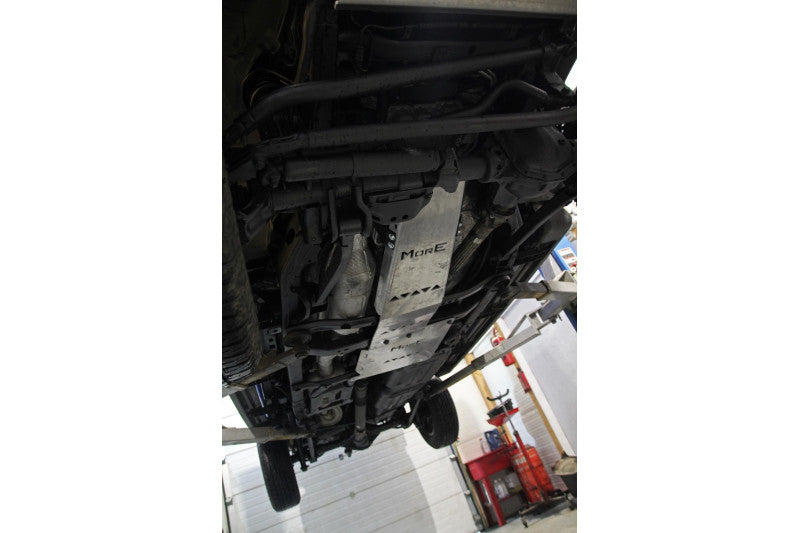

💡 Important note on product images: To show you the full extent of the underbody protection on the vehicle, some photos depict multiple skid plates. The scope of delivery for this item includes only the combined engine and transmission skid plate. The other skid plates (for radiator/stabilizer, transfer case, etc.) are not included in the scope of delivery but can be purchased separately in our shop.

Your advantages at a glance:

• Perfectly vehicle-specific: Custom-made for the Jeep Gladiator JT (from 2019) – precisely adapted to models with the powerful 3.0L V6 EcoDiesel engine.

• 2-in-1 protection area: Reliably protects both the sensitive engine oil pan and the main transmission from mechanical impacts and deformation from below.

• Lightweight & extremely robust: Made from high-quality, 6 mm thick aluminum. This offers the ideal balance of maximum stability for tough off-road use and minimal additional weight for your Jeep's suspension.

• Easy plug-and-play installation: No drilling, cutting, or welding on the vehicle required! The included mounting kit uses only the original factory drillings and threads in the ladder frame. Reverting to the production state is possible at any time without problems.

• Off-road proven construction: In the event of a hard impact off-road, the plate absorbs the impact energy and distributes it over a large area into the massive vehicle frame.

🛠️ Looking for an alternative version?

This product can be optimally adapted to your needs. Please contact us if you require the following alternative version:

• In robust steel: Also available as a 4 mm steel variant (item SKU: MO-OP109).

Technical Data:

• Suitable for: Jeep Gladiator JT (model years 2019+)

• Engine: 3.0L V6 EcoDiesel (MultiJet / CRD)

• Protection area: Engine oil pan and main transmission

• Material: 6 mm high-strength quality aluminum

• Installation: Directly to existing frame points (screw set included in delivery)

Scope of delivery:

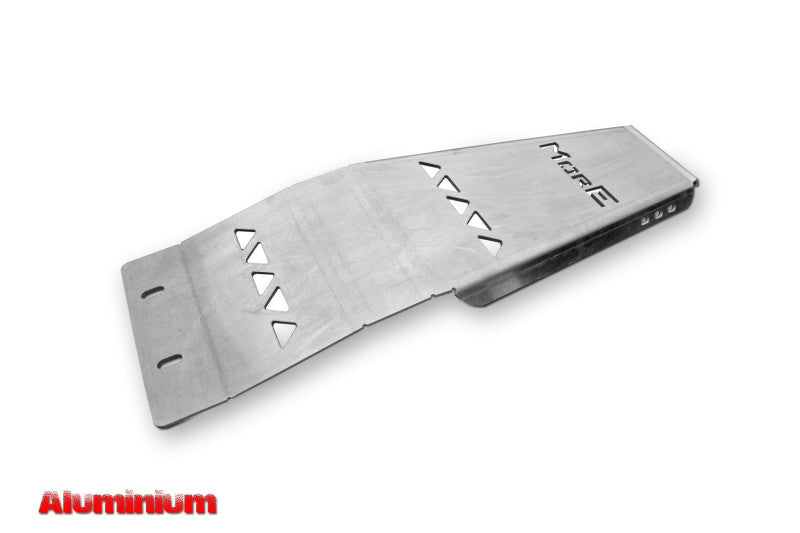

• 1x aluminum combined skid plate (engine/transmission)

• 1x vehicle-specific mounting and screw set (Note: Other skid plates visible in the photos for the radiator, transfer case, or fuel tank are not included in the scope of delivery and are available separately from us).
