Centered PU Control Arm Bushing Set for Mercedes G-Class W460 / W461 / W463

• Mercedes Benz

• G class

Renew the front and rear control-arm bushes on your Mercedes G-Class and restore more controlled longitudinal axle location. These mounting points transfer substantial braking and drive forces between the solid axles and frame and can become soft, cracked or worn with age.

This orange 75 Shore A polyurethane kit provides a balanced setup for vehicles used both on the road and off road without using the firmer blue heavy-duty specification.

Key details

• Fits: Mercedes-Benz G-Class W460, W461 and W463
• Position: Front and rear control arms, axle and frame sides
• Version: Regular centred bushes, not eccentric
• Material: Polyurethane
• Hardness: 75 Shore A
• Colour: Orange
• Metal sleeves and assembly grease: Included

More defined axle location

Polyurethane deforms less than aged rubber under braking, acceleration and uneven-road forces and can help the control arms guide the axles more consistently. The actual change depends on the condition of the existing bushes and the complete suspension.

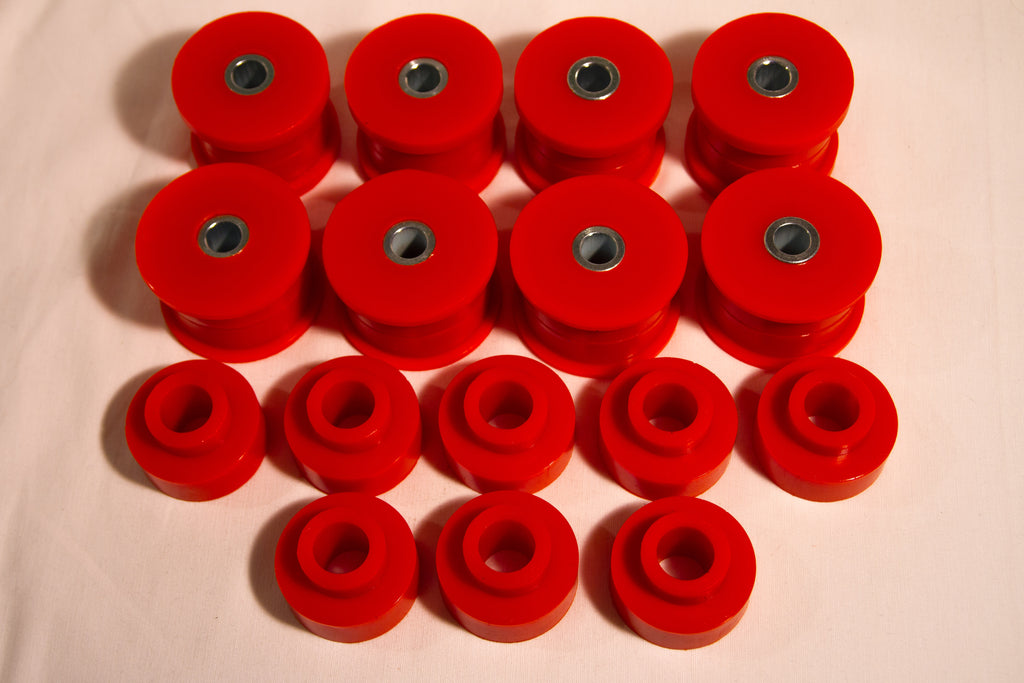

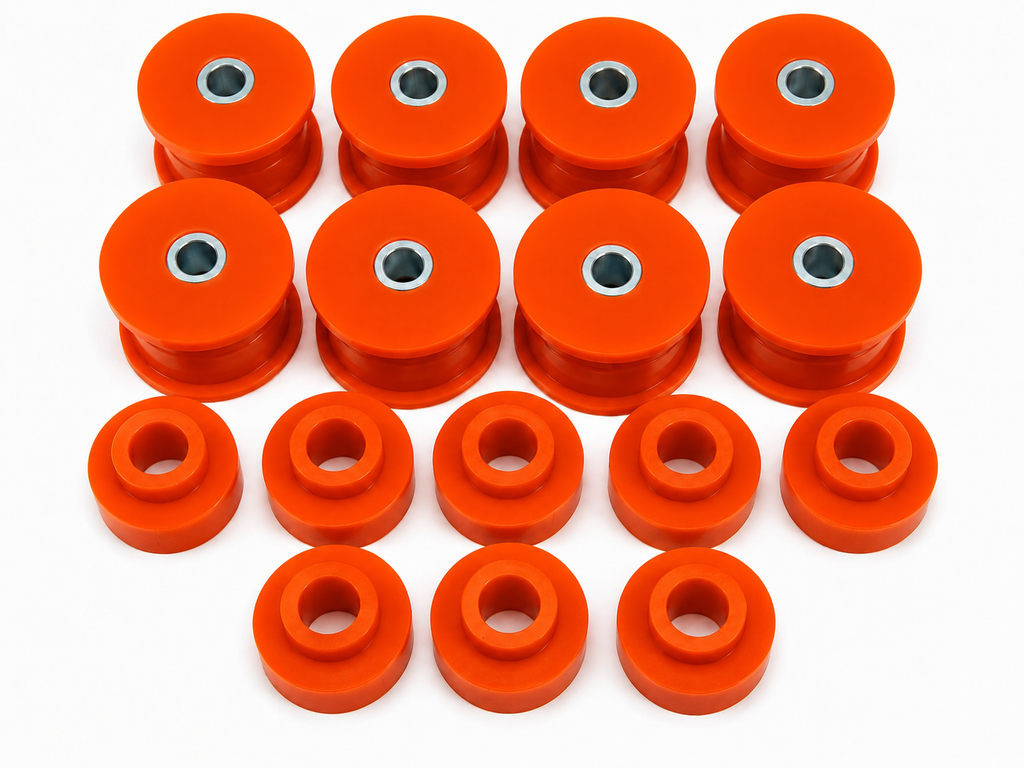

Kit contents

• Front control arms, axle side: 4 PU bushes and 4 metal sleeves
• Front control arms, frame side: 4 PU bushes
• Rear control arms, axle side: 4 PU bushes and 4 metal sleeves
• Rear control arms, frame side: 4 PU bushes
• Assembly grease

Centred or eccentric?

This set contains regular centred bushes and does not correct caster. Significantly lifted vehicles may require a separate eccentric set depending on the measured suspension geometry.

Installation note

Inspect all arms, bolts and mounts for corrosion or deformation. Tighten the suspension fasteners in the position specified by the vehicle manufacturer and check axle and steering geometry after installation.
